Gravel ATB

Gravel ATB

Built for city streets, gravel roads, and everything in between, the Lochside Cycles Gravel ATB combines a classic 4130 chromoly steel frame with a modern, wide-range drivetrain.

The steel frame and fork offer a comfortable, confident ride, with plenty of mounts for fenders and racks. Kenda 700 x 40mm bronze sidewall tires provide a great balance of speed, comfort, and grip, while the frame offers clearance for tires up to 50mm.

A microSHIFT Sword 1x10 drivetrain with an 11-48T wide-range cassette gives you simple, dependable shifting and plenty of gearing for climbing, commuting, and exploring. Tektro mechanical disc brakes with Jagwire compressionless housing provide reliable braking in changing conditions.

Finished in Metallic Black, a deep black that comes alive in sunlight with subtle golden and warm metallic highlights.

Specifications

• Colour: Metallic Black, deep black with golden and warm metallic highlights
• Frame: 4130 Chromoly Steel All Road, fender and rack mounts, available in Small, Medium and Large
• Fork: 4130 Chromoly Steel, lugged, fender and rack mounts
• Tires: Kenda 700C x 40mm, Bronze Sidewall
• Tire Clearance: Up to 50mm
• Saddle: WTB Volt Medium, Black
• Shifter: microSHIFT Sword, 1x10-Speed
• Rear Derailleur: microSHIFT Sword, 1x with clutch
• Cassette: microSHIFT Sword 10-Speed, 11-48T wide range

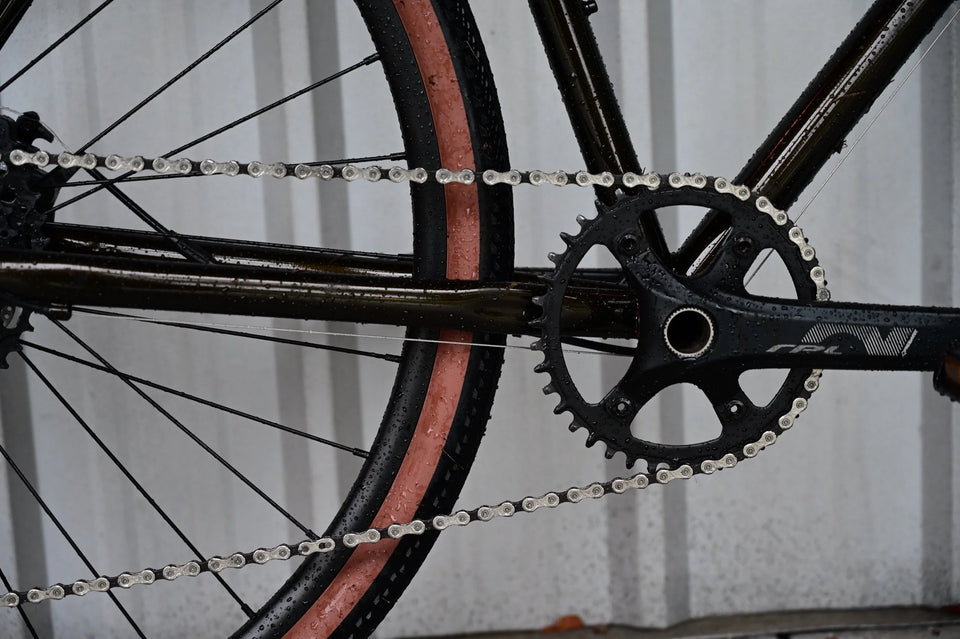

• Crankset: microSHIFT Sword 1x, 40T Narrow-Wide, 170mm
• Brakes: Tektro Mechanical Disc, 160mm rotors with Jagwire compressionless brake housing
• Rims: Lochside Aluminum Double Wall, 19mm inner, disc specific
• Hubs: Thru-Axle, sealed bearings
• Spokes: 32 stainless steel black spokes, 13GA rear / 14GA front
• Handlebar: 440mm Compact Drop, aluminum, 31.8mm, Black
• Stem: Threadless Black Alloy
• Headset: Sealed Cartridge Bearings, 1 1/8"
• Bar Tape / Grips: Velo Shockproof with Vex Gel
• Pedals: Large-platform
