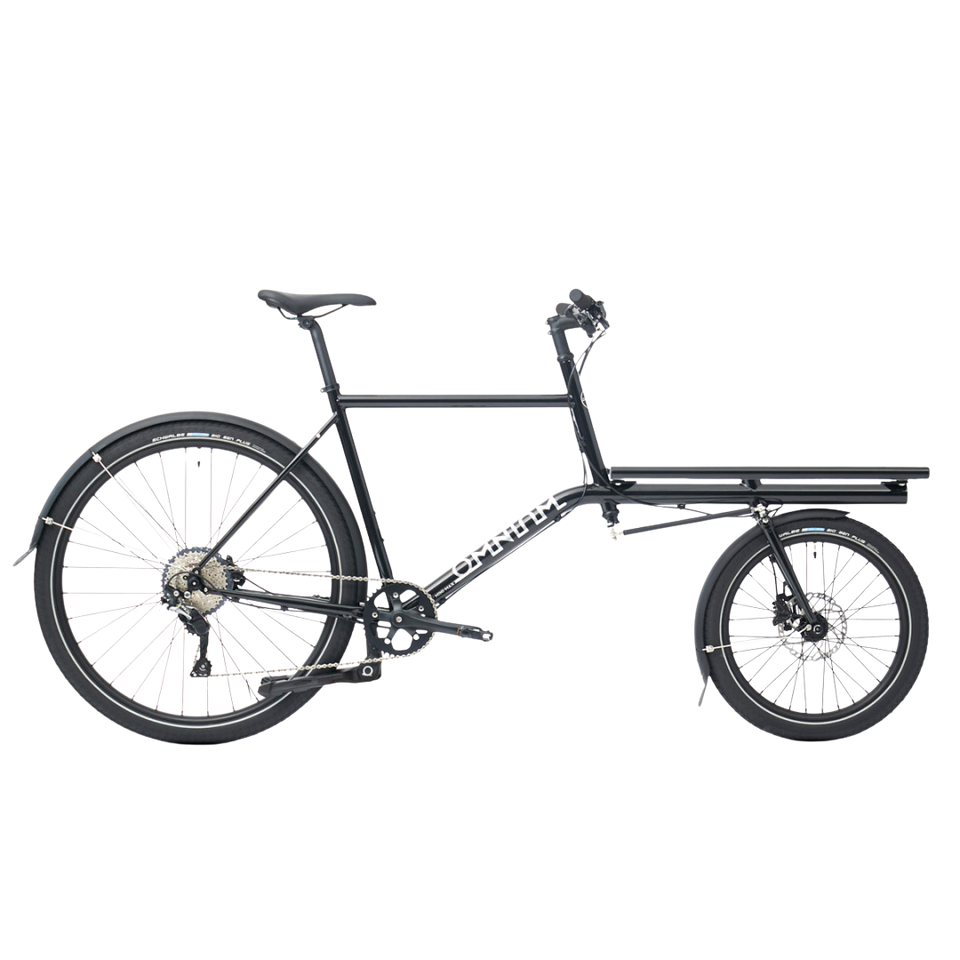

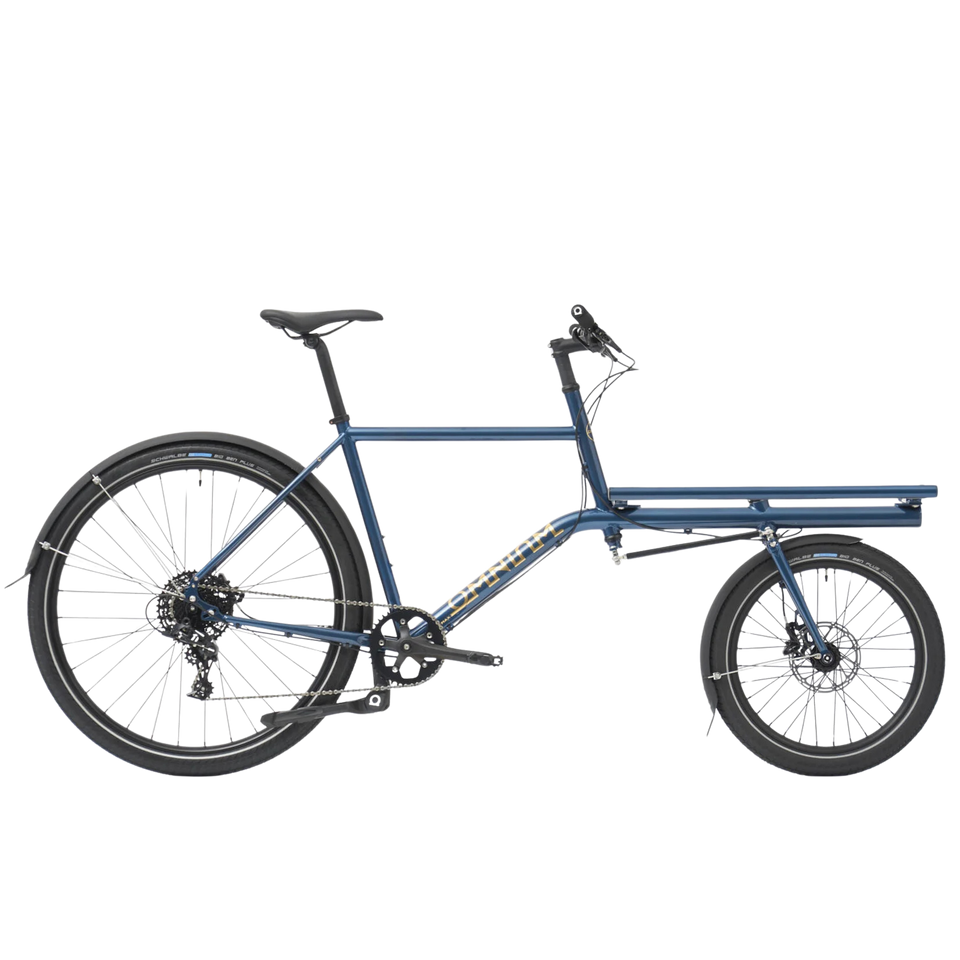

OMNIUM Mini-Max

The OMNIUM Mini-Max is fast, light, and seriously capable. With the front wheel positioned in the centre of the rack, steering stays sharp and controlled — even under load. It’s compact, manoeuvrable, and built to handle tight city streets, big hauls, and everyday urban work.

It rides like a bike.
It works like a van.

Frame Specifications

Frame Material
Double-Butted Chromoly Steel

Sizes
XS, S, M, L, XL

Drivetrain Compatibility
Designed for 1x rear derailleur systems

Seatpost Diameter
31.6 mm

Seatpost Clamp
34.0 mm

Wheels & Axles

Rear Wheel Options
• TA Insert: 622 (700c), 12 × 142mm, disc only
• QR Insert: 622 (700c), 10 × 135mm, disc only

Front Wheel
• 406 (20”), 15 × 100mm, disc only

Thru Axles
• Rear: 12 × 142mm, 172mm length, 1.75mm pitch
• Front: 15 × 100mm, 125mm length, 1.5mm pitch

Tyre Clearance
• 55mm front and rear (with mudguards)

Frame Details

Bottom Bracket
BSA 68mm

Headset (Fork)
1 1/8″ Threaded Integrated with locking cap

Headset (Steerer)
1 1/8″ Ahead

Q-Factor
145mm

Rack & Capacity

Rack Dimensions
70cm × 50cm (Aluminum)

Rack Weight
1320g (+/-)

Complete Bike Weight (Medium)
19kg

Maximum Front Rack Load
85kg

Maximum Total System Weight (Bike + Rider + Cargo)
150kg

Build Options

SRAM Apex 1x11 Build

A performance-focused setup with wide-range gearing and strong hydraulic braking.

Drivetrain & Brakes

• SRAM Apex 11-Speed Rear Derailleur

• SRAM PG-1130 11–42T Cassette

• Omnium 42T Wide-Narrow Crankset

• KMC 11-Speed EPT Chain

• SRAM Level TL Brakes (IS Mount)

• SRAM Centerline 160mm Rotors

Bottom Bracket

• FSA 10.5mm Square Taper

Shimano 1x11 Build

Smooth, reliable shifting with Shimano’s proven Deore/SLX platform. Durable, easy to service, ideal for daily use.

Drivetrain & Brakes

• Shimano Deore M5100 11-Speed Rear Derailleur

• Shimano SLX 11–40T Cassette

• Omnium 42T Wide-Narrow Crankset

• KMC 11-Speed EPT Chain

• Shimano MT500 Brakes (IS Mount)

• 160mm Rotors (Rear 6-Bolt / Front Centerlock)

Bottom Bracket

• FSA 10.5mm Square Taper

Alfine 8-Speed Belt Drive Build

Low maintenance, ultra-clean, and ideal for all-weather riding. Internal gearing with Gates belt system.

Drivetrain & Brakes

• Shimano Alfine 8-Speed Internal Hub (Centerlock)

• Shimano Alfine Shifter

• Gates CDN Crankset 170mm | 50T

• Gates CDX 22T Rear Sprocket

• Gates CDX Belt (122T)

• SRAM Level TL Brakes

• 160mm Rotors (Front 6-Bolt / Rear Centerlock)

Bottom Bracket

• FSA 22mm Square Taper

Wheelset (All Builds)

Rear Wheel

• 29” / 700C

• 12mm Thru Axle (142mm)

• DT 370 Hub (Alfine hub on belt build)

• U663 Aluminum Rim

• 30mm Inner Width

• Tubeless Compatible

• Max Load: 180kg

Front Wheel

• 20” / 406

• 15mm Thru Axle (100mm)

• U663 Aluminum Rim

• 30mm Inner Width

• Tubeless Compatible

Optional Dynamo Front

• SP PD-6 Hub

• 15mm Thru Axle
