Made to Order

Omnium bikes are made to order. Have questions or ready to spec yours out? Email us at sales@bikesonwheels.com or call 416-966-2453.

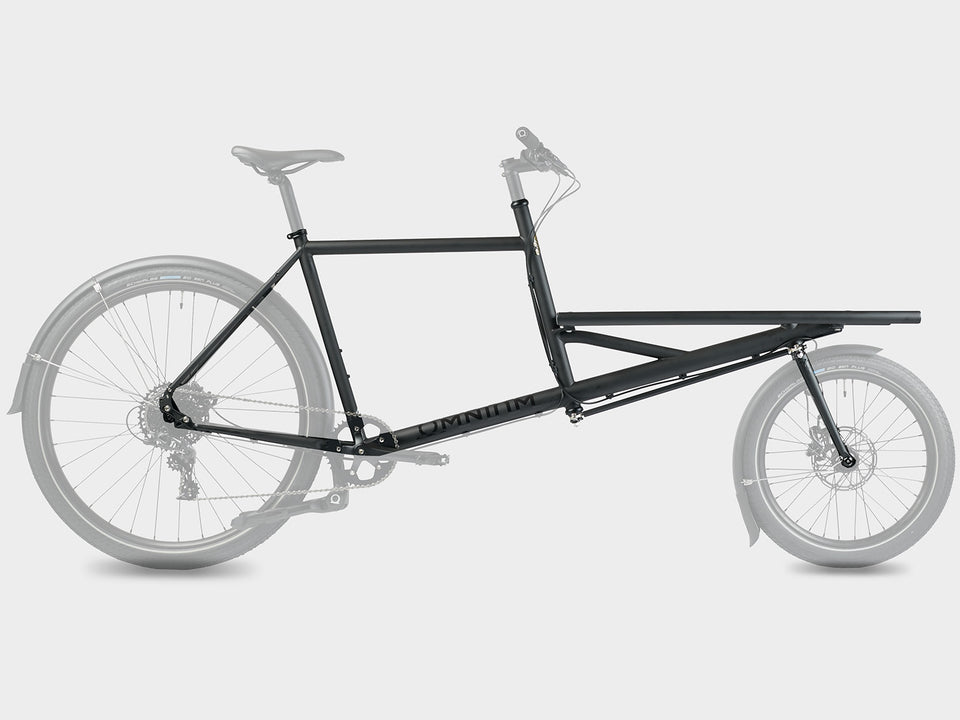

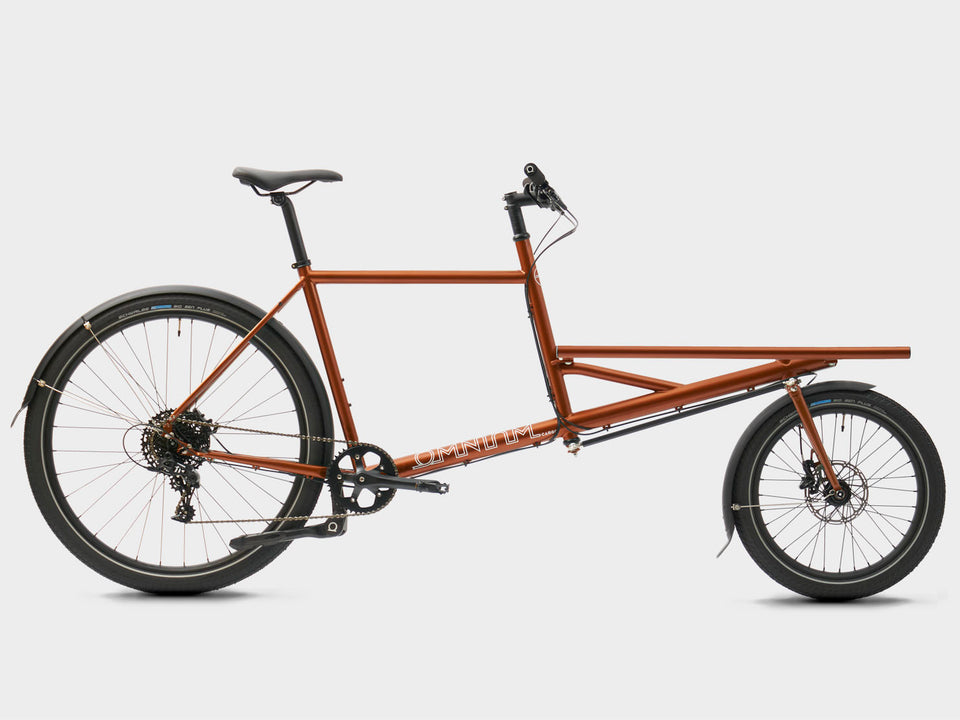

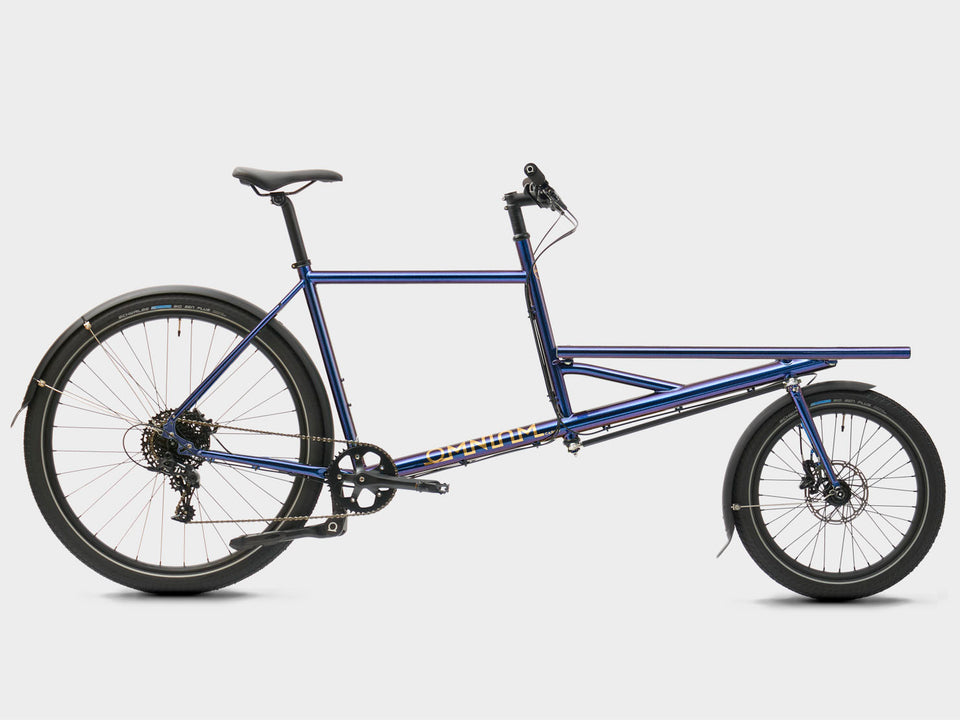

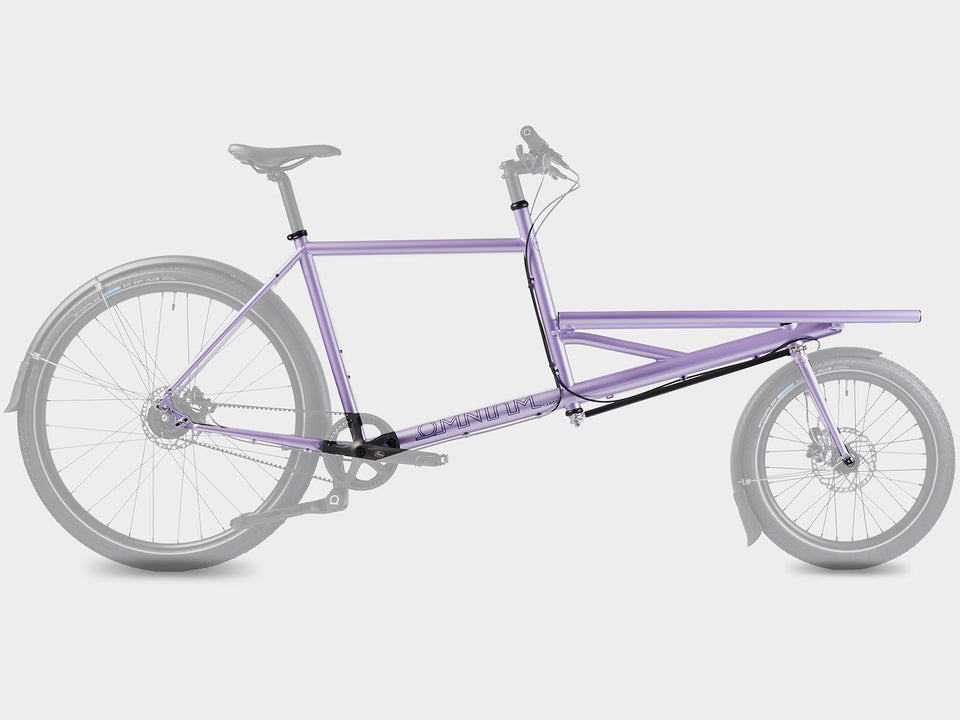

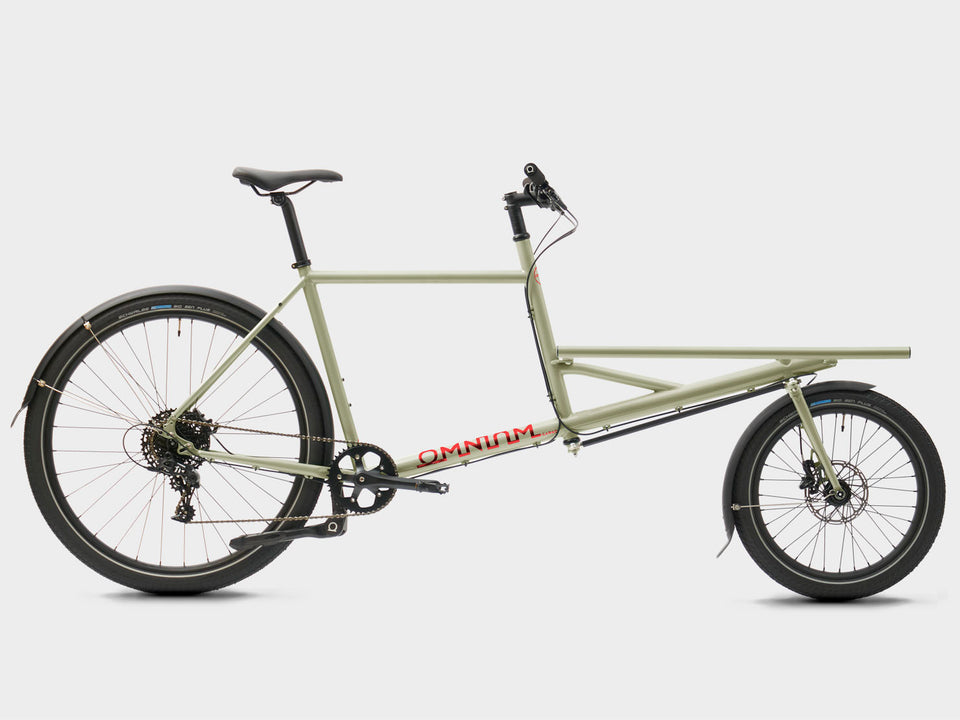

Omnium Cargo V3 — Frame Kit

Build your own custom dream bike from scratch. The same fast, lightweight Omnium Cargo you know and love — now with adjustable rocker dropouts for next-level versatility. Big, comfy 55mm tires, trusty thru-axles, and the longest wheelbase in the Omnium lineup for confident, stable load carrying.

Adjustable Rocker Dropouts

Run a wide range of drivetrain options (not all at once): external derailleur gears, internal gear hubs, belt drive, or even fixed. Swappable inserts let you choose between thru-axle and quick release depending on your hub spacing:

• 10 x 135 QR with IS brake mount — for internal gear hubs or QR rear hubs
• 12 x 142 thru-axle with IS brake mount — the standard choice for thru-axle hubs

All forks ship with 15 x 100 thru-axle regardless of dropout choice.

What's in the Frame Kit

Frame, fork, headsets (front and rear), steering rod, steerer tube, seat clamp, rack, front thru-axles, and your choice of QR or 12mm thru-axle dropouts and axle. Does NOT include headset spacers or kickstand.

Frame Specifications

Frame material: Double-Butted Chromoly Steel
Sizes: XS, S, M, L, XL
Frame kit weight: 10.0 kg
Rear wheel: 622, 12 x 142mm (TA) or 10 x 135mm (QR), disc only
Front wheel: 406, 15 x 100mm, disc only
Tyre clearance: 55mm front and rear (with mudguards)
Seat post: 31.6 mm (clamp 34.0 mm)
Bottom bracket: BSA 68mm
Max front rack load: 75 kg
Max total load incl. rider: 175 kg

Size Guide

155–165cm → XS
165–175cm → S
175–185cm → M
185–195cm → L
195–205cm → XL
