Made to Order

Omnium bikes are made to order. Have questions or ready to spec yours out? Email us at sales@bikesonwheels.com or call 416-966-2453.

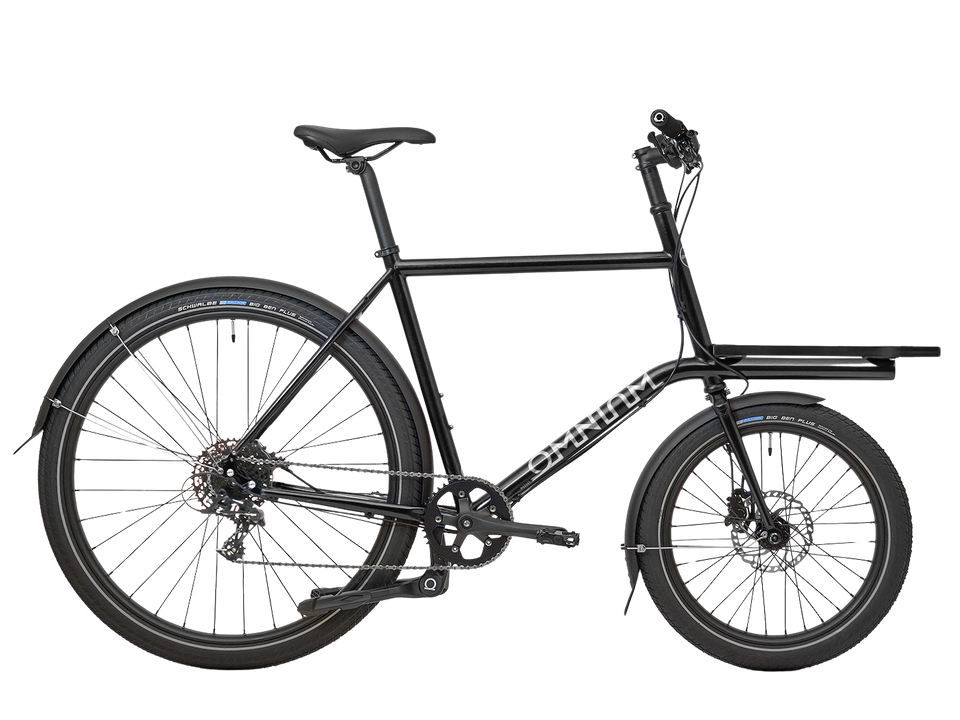

Omnium Mini V3.1 — Frame Kit

The most playful cargo bike out there — now in V3.1, with a Step Through option. The Mini is a normal bike with a front rack on steroids: manageable size, familiar handling, and a rack built directly into the frame so even big loads barely affect steering. Adjustable rocker dropouts, big 55mm tires, and trusty thru-axles.

Adjustable Rocker Dropouts

Run a wide range of drivetrain options (not all at once): external derailleur gears, internal gear hubs, belt drive, or even fixed. Swappable inserts let you choose between thru-axle and quick release depending on your hub spacing:

• 10 x 135 QR with IS brake mount — for internal gear hubs or QR rear hubs
• 12 x 142 thru-axle with IS brake mount — the standard choice for thru-axle hubs

All forks ship with 15 x 100 thru-axle regardless of dropout choice.

What's in the Frame Kit

Frame, fork, headsets (front and rear), steering rod, steerer tube, seat clamp, rack, front thru-axles, and your choice of QR or 12mm thru-axle dropouts and axle. Does NOT include headset spacers or kickstand.

Frame Specifications

Frame material: Double-Butted Chromoly Steel
Sizes: Step Through, S, M, L, XL
Frame kit weight: 6.2 kg
Rear wheel: 622, 12 x 142mm (TA) or 10 x 135mm (QR), disc only
Front wheel: 406, 15 x 100mm, disc only
Tyre clearance: 55mm front and rear (with mudguards)
Seat post: 31.6 mm (clamp 34.0 mm)
Bottom bracket: BSA 68mm
Rack: 40cm x 46cm aluminum, ~700g
Recommended max load incl. rider: 125 kg
