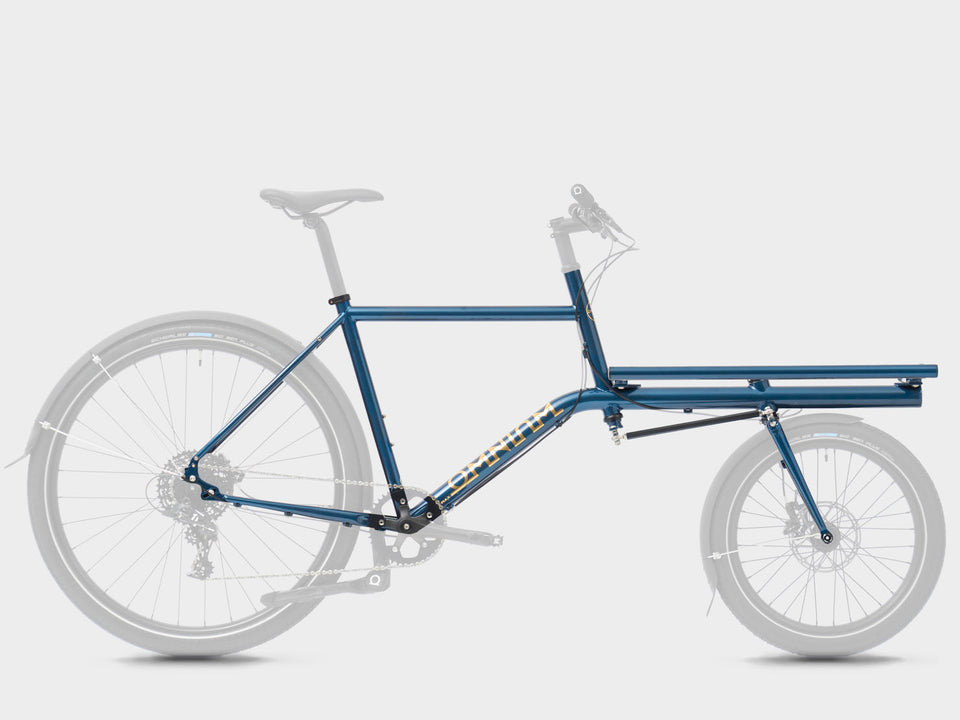

Mini Max V3 - Frame Kit
by Omnium
Made to Order
Omnium bikes are made to order. Have questions or ready to spec yours out? Email us at sales@bikesonwheels.com or call 416-966-2453.
Description
The Omnium Mini-Max V3 is the perfect balance between a traditional bicycle and a full-size cargo bike. Fast, agile, and incredibly versatile, it's designed for riders who want serious carrying capacity without sacrificing everyday ride quality.
Featuring Omnium's adjustable rocker dropouts, the Mini-Max V3 supports a wide range of drivetrain options, including derailleur systems, internal gear hubs, belt drives, and even fixed gear. Swappable inserts allow you to choose between thru-axle and quick-release rear hubs, making future upgrades and repairs quick and simple.
With its shorter wheelbase, the Mini-Max handles much like a standard bicycle, offering responsive steering, a tight turning radius, and excellent maneuverability through city streets. The front rack remains compatible with the Omnium Extender Bar, allowing you to carry everything from groceries and work equipment to camping gear and oversized cargo.
If you want a cargo bike that's fast, fun, and capable enough for everyday life, the Mini-Max V3 is hard to beat.
Design
The Mini-Max V3 combines the agility of the Mini with much of the carrying capability of the Cargo model.
- Adjustable rocker dropouts
- Compatible with derailleur, internal gear hub, belt drive, or fixed gear setups
- Thru-axle and quick-release dropout inserts
- Lightweight chromoly steel frame
- Stable front cargo platform
- Extender Bar compatible
- Tight turning radius for city riding
- Ideal for commuting, family use, and commercial deliveries
Size Guide
| Rider Height | Recommended Size |
|---|---|
| 150 to 170 cm (4'11" to 5'7") | Small |
| 170 to 185 cm (5'7" to 6'1") | Medium |
| 185 to 200 cm (6'1" to 6'7") | Large |
If you're between sizes, choose the smaller size for a more responsive ride or the larger size for additional stability.
Weight Guide
The Mini-Max V3 comfortably carries:
- Rider weight: up to 120 kg (265 lbs)
- Front rack cargo: up to 70 kg (154 lbs)
- Total recommended system weight (bike, rider, and cargo): approximately 190 kg (419 lbs)
Geometry
The Mini-Max V3's geometry is designed to deliver a natural riding position with excellent stability under load while maintaining the responsive handling of a conventional bicycle.
Key characteristics include:
- Short wheelbase for agile handling
- Low center of gravity
- Stable front load distribution
- Comfortable upright riding position
- Excellent control with heavy cargo
(A full geometry chart with frame measurements can be viewed in the Geometry tab.)
Components List (Frame Kit)
The Frame Kit includes:
- Omnium Mini-Max V3 frame
- Matching fork
- Adjustable rocker dropouts
- Thru-axle dropout inserts
- Headset
- Seatpost clamp
- Front cargo rack
- Axles
- Small hardware kit
Frame Specifications
- Frame: Double-butted 4130 Chromoly Steel
- Fork: 4130 Chromoly Steel
- Front Rack: Integrated welded chromoly rack
- Rear Hub Compatibility: 135 mm QR / 142 × 12 mm Thru-Axle (with inserts)
- Brake Mount: Flat Mount Disc
- Rear Rotor Size: Up to 160 mm
- Bottom Bracket: BSA Threaded
- Head Tube: Tapered
- Tire Clearance: Up to 55 mm (varies by tire and rim)
- Front Axle: 100 × 12 mm Thru-Axle
- Rack Compatible: Omnium Extender Bar
