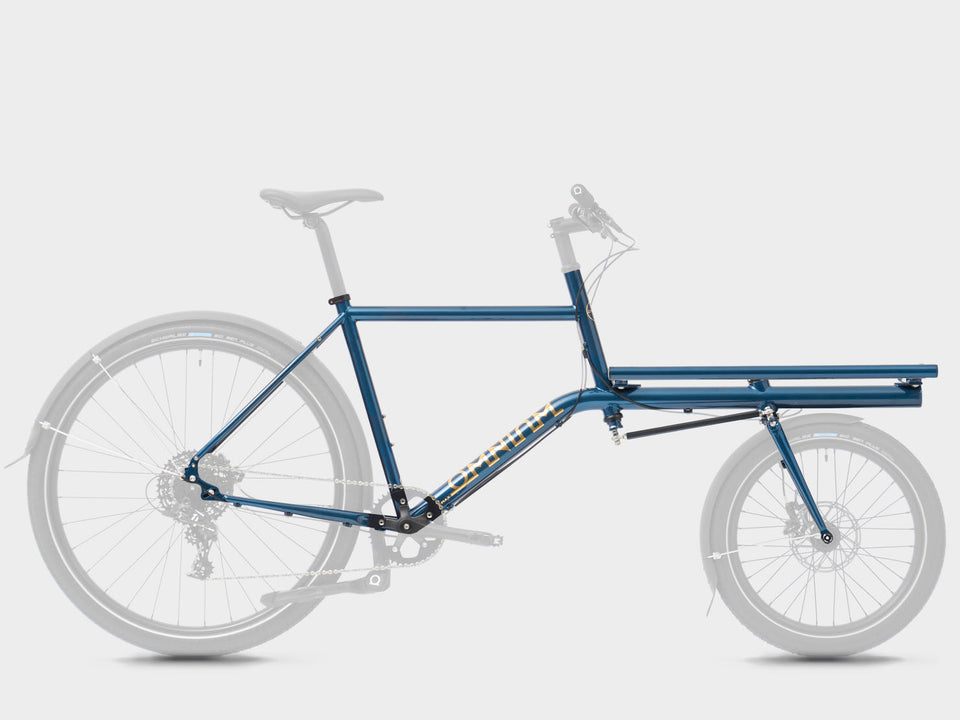

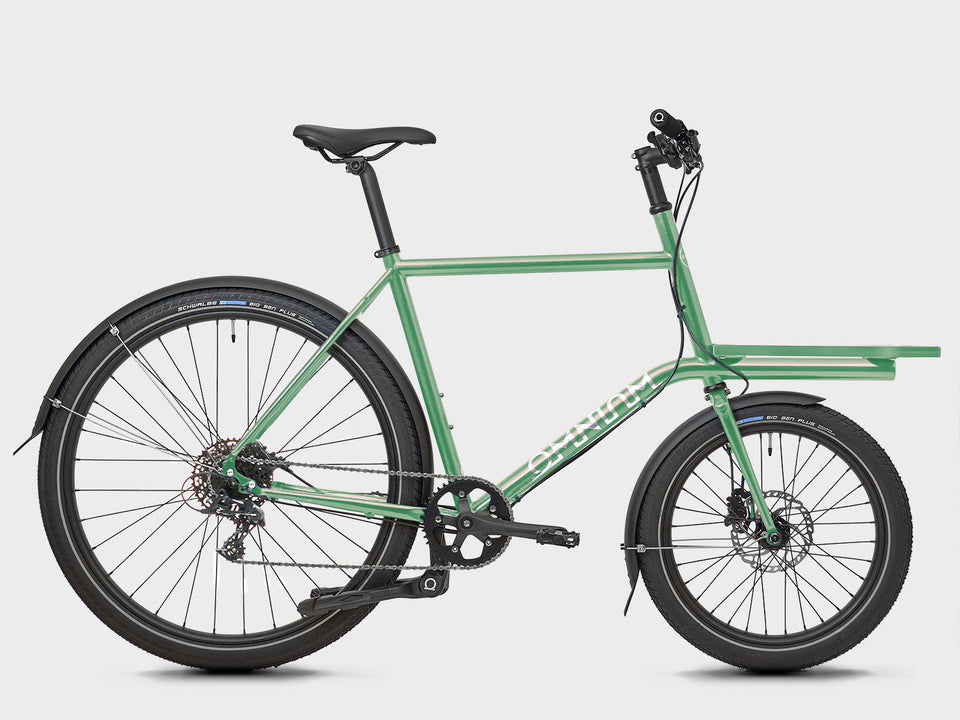

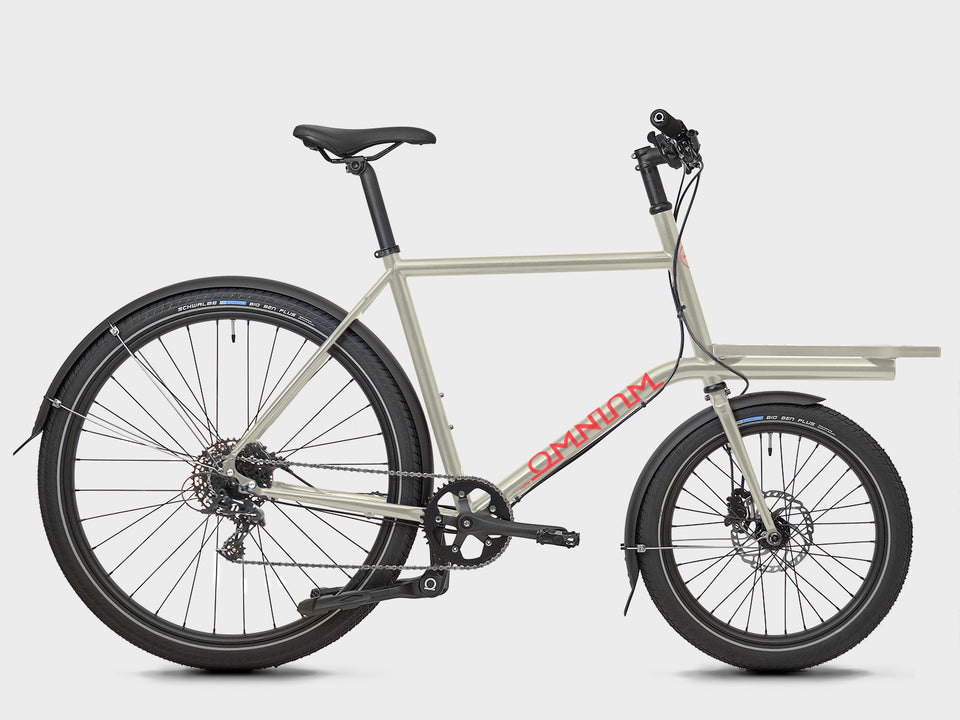

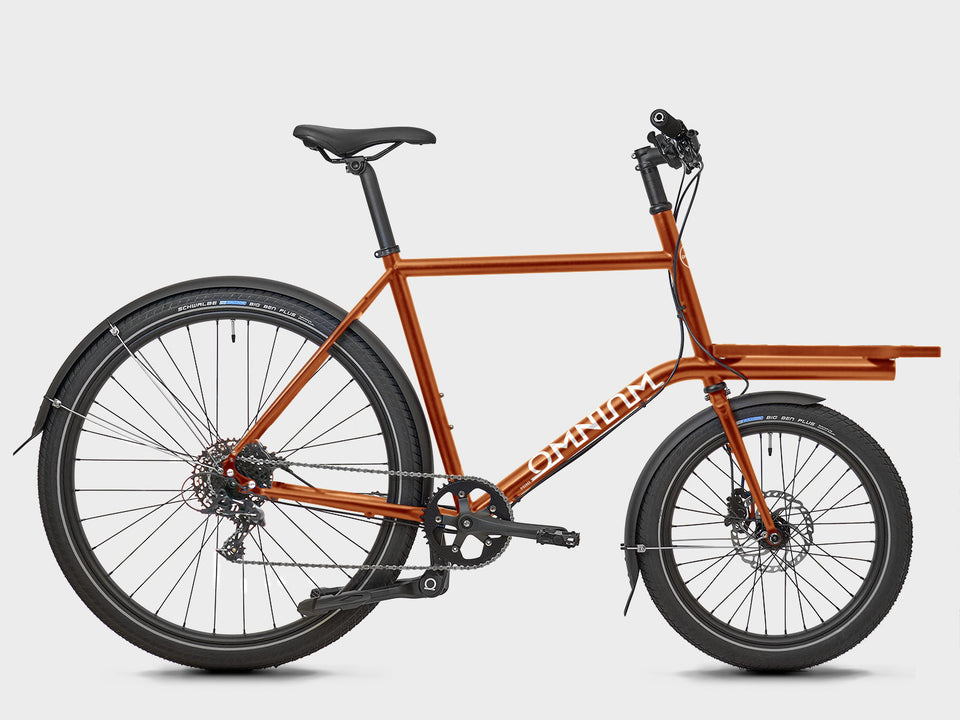

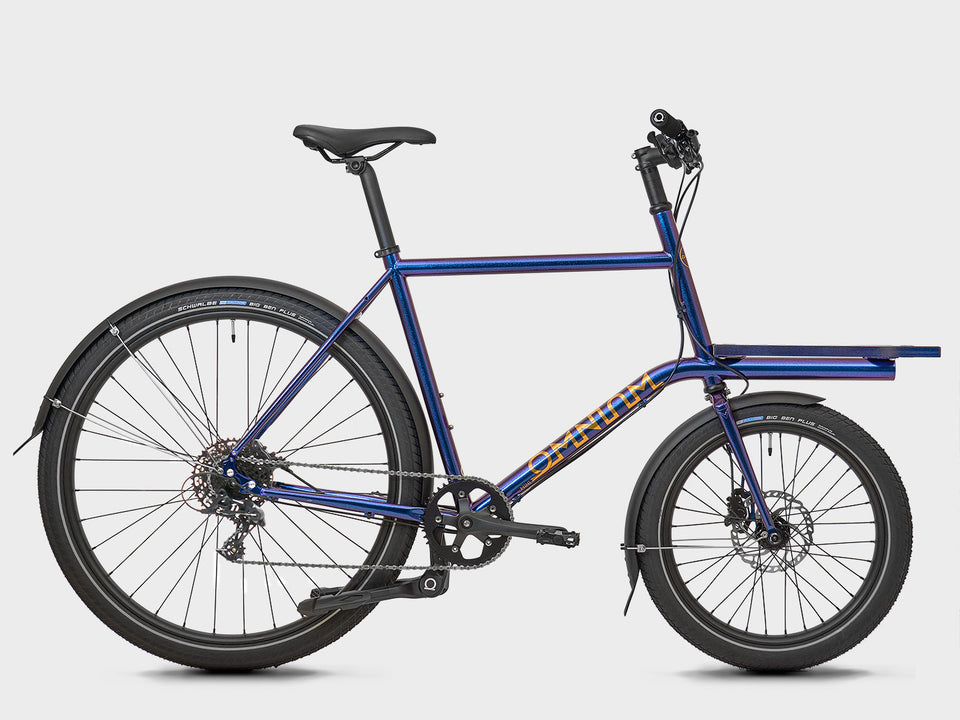

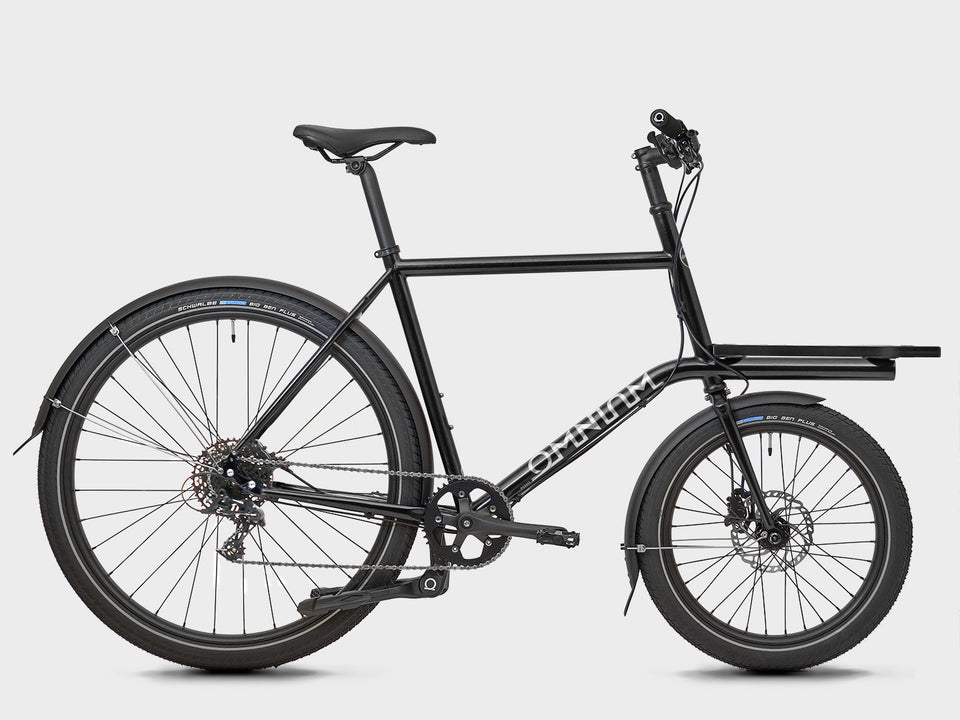

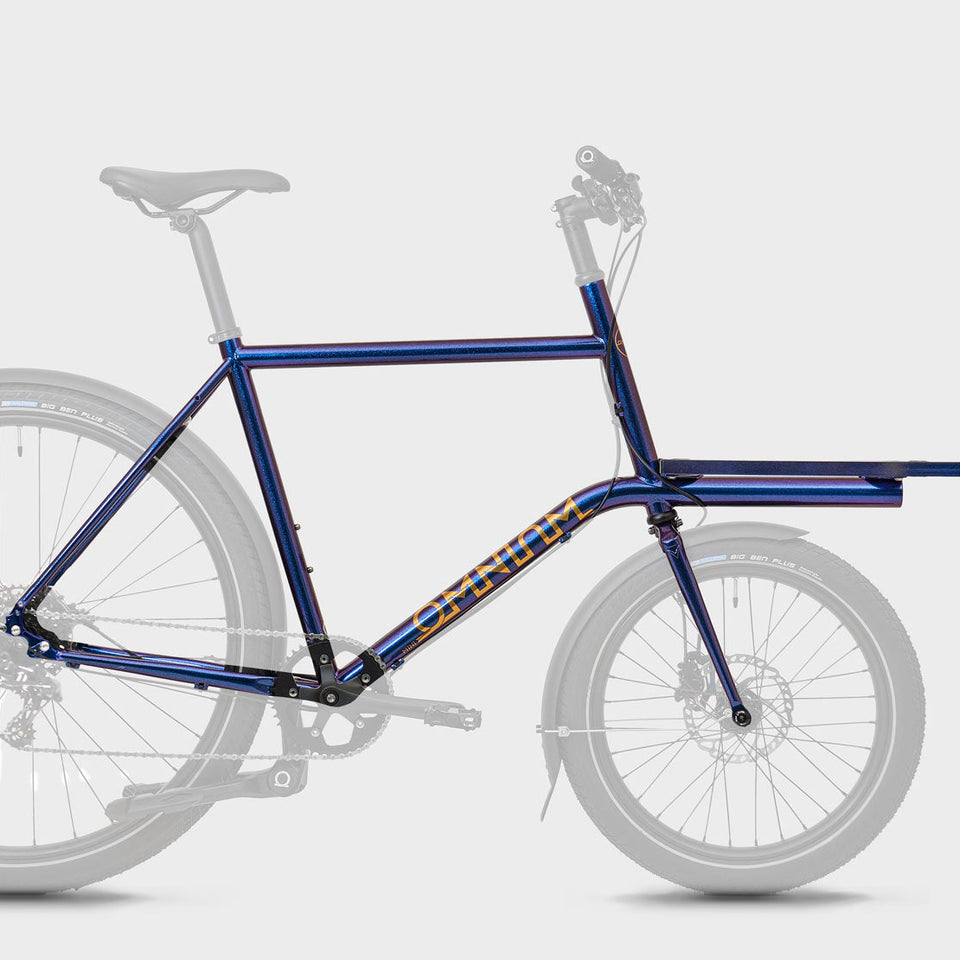

Mini V3 Frameset
by Omnium
Description
The Omnium Mini V3 is the ultimate cargo bike for riders who want the speed and handling of a regular bicycle with the practicality of a front cargo rack. Now featuring adjustable rocker dropouts, the Mini V3 is more versatile than ever, allowing you to build the bike that best suits your riding style.
The new rocker dropout system is compatible with a wide range of drivetrain options, including traditional derailleur setups, internal gear hubs, belt drives, and even fixed gear. Swappable inserts allow you to choose between thru-axle and quick-release rear hubs, making future upgrades and maintenance simple.
With its compact size and familiar handling, the Mini V3 feels remarkably similar to riding a standard bicycle. Its integrated front rack provides exceptional carrying capacity while keeping your cargo low and directly in front of you, giving you full visibility and confidence while riding.
Because the rack is built directly into the frame, even heavy loads have very little effect on steering. Whether you're carrying groceries, work equipment, deliveries, or everyday essentials, the Mini V3 remains stable, responsive, and incredibly fun to ride.
If you're looking for a fast, lightweight cargo bike that blends everyday practicality with outstanding ride quality, the Omnium Mini V3 is one of the most capable and playful cargo bikes available.
Frame Specifications
| Specification | Details |
|---|---|
| Frame Material | Double-Butted Chromoly Steel |
| Available Sizes | XS, S, M, L, XL |
| Drivetrain Compatibility | 1x Rear Derailleur (compatible with rocker dropouts for additional drivetrain options) |
| Seatpost Diameter | 31.6 mm |
| Seatpost Clamp | 34.0 mm |
| Rear Wheel | 622c • 12 × 142 mm Thru-Axle or 10 × 135 mm Quick Release (disc only) |
| Front Wheel | 406 • 15 × 100 mm Thru-Axle (disc only) |
| Front Tire Clearance | Up to 55 mm with fenders |
| Rear Tire Clearance | Up to 55 mm with fenders |
| Rear Thru-Axle | 12 × 142 mm • 172 mm length • 19 mm thread • 1.75 mm pitch |
| Front Thru-Axle | 15 × 100 mm • 125 mm length • 17 mm thread • 1.5 mm pitch |
| Bottom Bracket | BSA Threaded, 68 mm |
| Headset | 1 1/8" Ahead |
| Q-Factor | 145 mm |
| Front Rack Dimensions | 40 × 46 cm |
| Rack Material | Aluminum |
| Rack Weight | Approximately 700 g |
| Rack Hardware | M8 × 15 mm bolts |
| Complete Bike Weight | Approximately 18 kg (Medium) |
| Maximum Recommended System Weight | 125 kg (Rider + Bike + Cargo) |
